| Model | RG-NBS3200-24GT4XS |
| Ports | 24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Dimensions | 440×207.5×43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH |

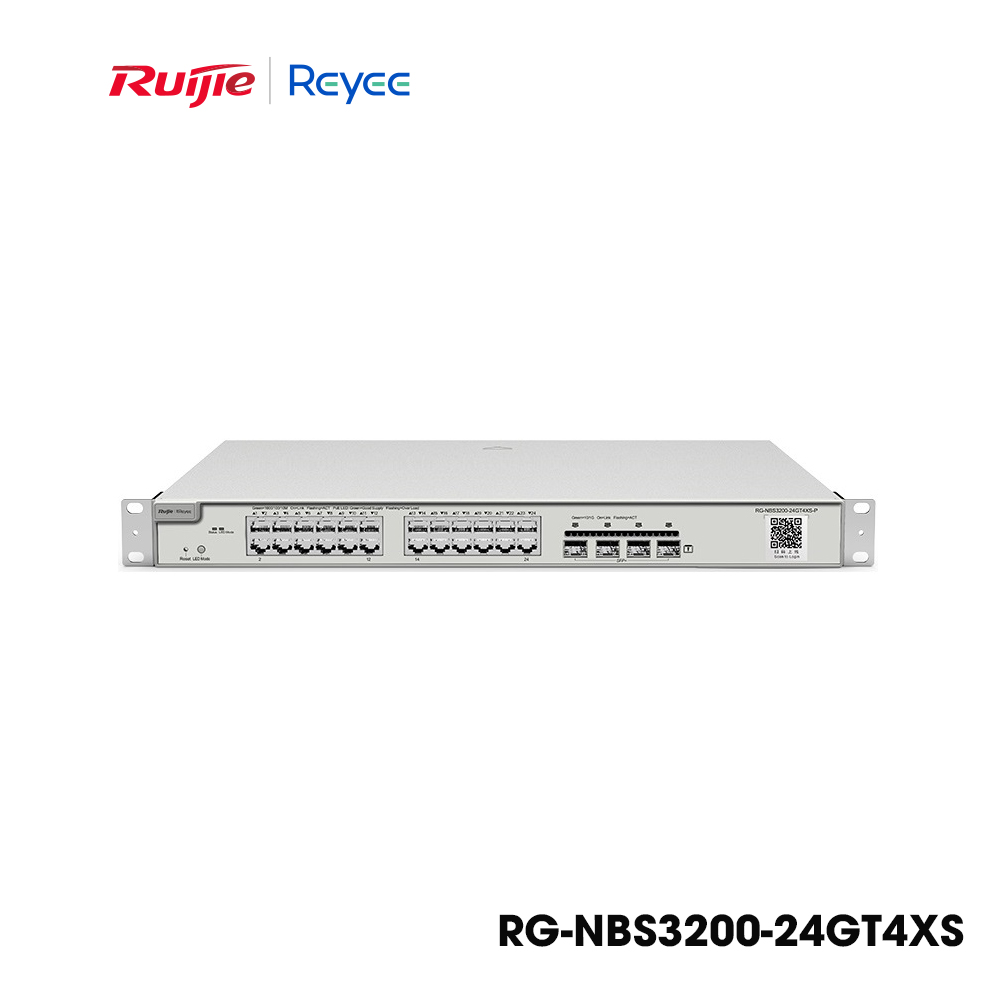

RG-NBS3200-24GT4XS
Layer 2 Smart Managed Switch 24 Cổng 10/100/1000BASE-T+ 4 cổng quang 10G
– 24 cổng 10/100/1000BASE-T
– 4 cổng SFP+ 10GB BASE-X
– Tốc độ chuyển mạch: 336Gbps
– MAC: 16K, VLAN: 4094
– Tính năng Layer 2: port mirroring, loop protection, cable detection
– Tính năng bảo mật: broadcast storm suppression, port speed limit, port isolation
– Kích thước: 440×207.5×43.6mm
– Nhiệt độ hoạt động: 0°C~50°C
– Dễ dàng quản lý và cấu hình qua Ruijie cloud
– Tích hợp Web management
– Nguồn AC 100~240V, 50/60Hz
– Hỗ trợ IEEE802.1Q VLAN, bảo mật giữa các nhóm thiết bị
