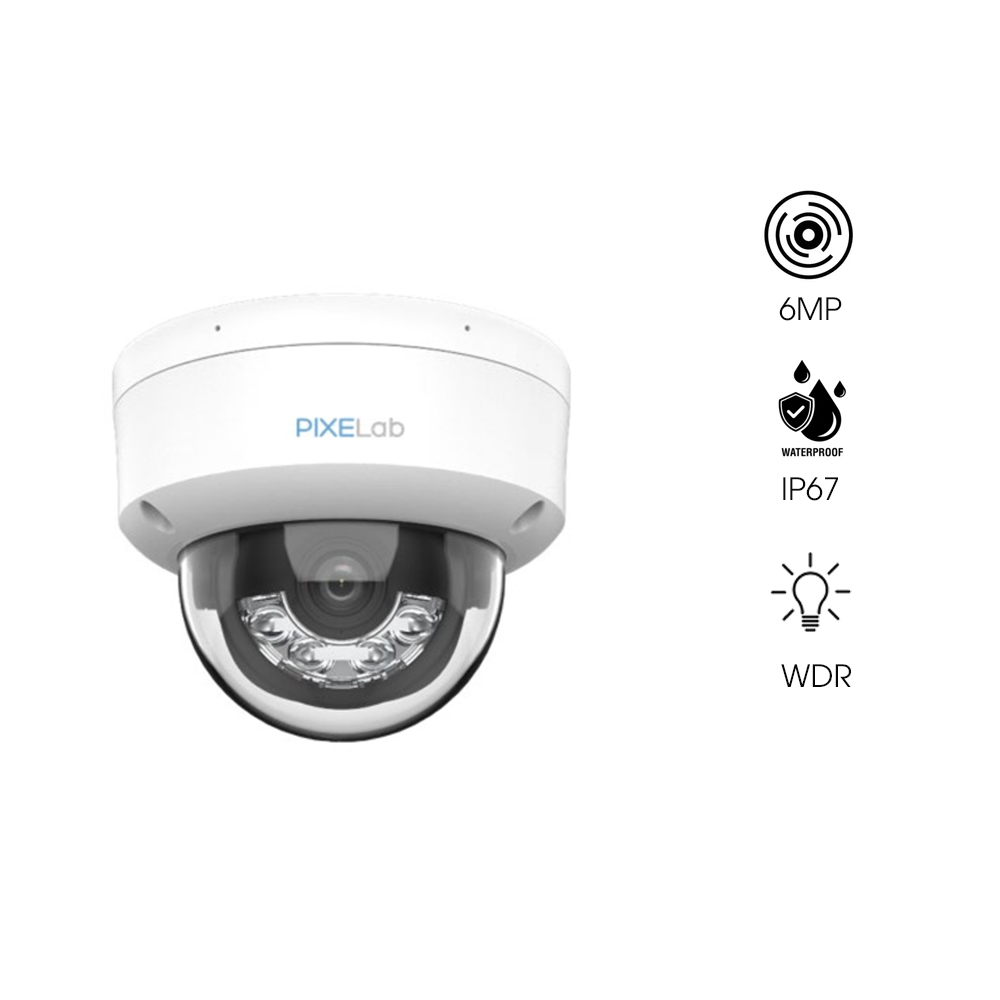

Camera IP 6MP Pixelab PXL-D361BK-LF

– Image Sensor : 1/2.4″” Progressive Scan CMOS 6MP
– Max. Resolution : 3200 × 1800 / Shutter Time : 1/3 s to 1/100,000 s
– Min. Illumination : Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
– Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
– Lens Type : Fixed focal lens 2.8
– Focal Length & FOV: 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
– Lens Mount:M12 / Iris Type : Fixed / Aperture :F1.6
– DORI : 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
– Supplement Light Range : Up to 50 m
– Smart Supplement Light : Yes / IR Wavelength : 850 nm
– Wide Dynamic Range (WDR) : 130 dB / SNR ≥ 52 dB
– Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
– On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
– Built-in Microphone: Yes, 1 built-in microphone
– Reset Key : Yes
– API: Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
– Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
– Smart Event: Line crossing detection, intrusion detection
Privacy Mask :4 programmable polygon privacy masks
– Client: Pixelab ISM Professional
– Made in Malaysia
– Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
– Video Compression: H.265+/H.265/H.264+/H.264
– Protection : IP67, IK08
– Region of Interest (ROI): 1 fixed region for main stream and sub-stream
– Power : 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection / PoE: IEEE 802.3af, Class 3, max. 7.5 W
– Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
